多融合
• 一体化设计
• EMS、混合逆变器和BMS集成技术
• 支持黑启动功能和离网运行
• 电源冗余设计 -
保护
• 烟雾和温度探测
• 系统主动排气和火灾报警
• 电池组和系统使用气溶胶灭火 -
灵活的
• 支持多达6个单元的直流并联
• 交流并联扩展：最多3台 -
高效便捷
• 超高能量密度
• 紧凑尺寸
• 安装简单，运输方便 -
可靠性
• IP55，户外使用
• 温度范围宽：-20°C~55°C

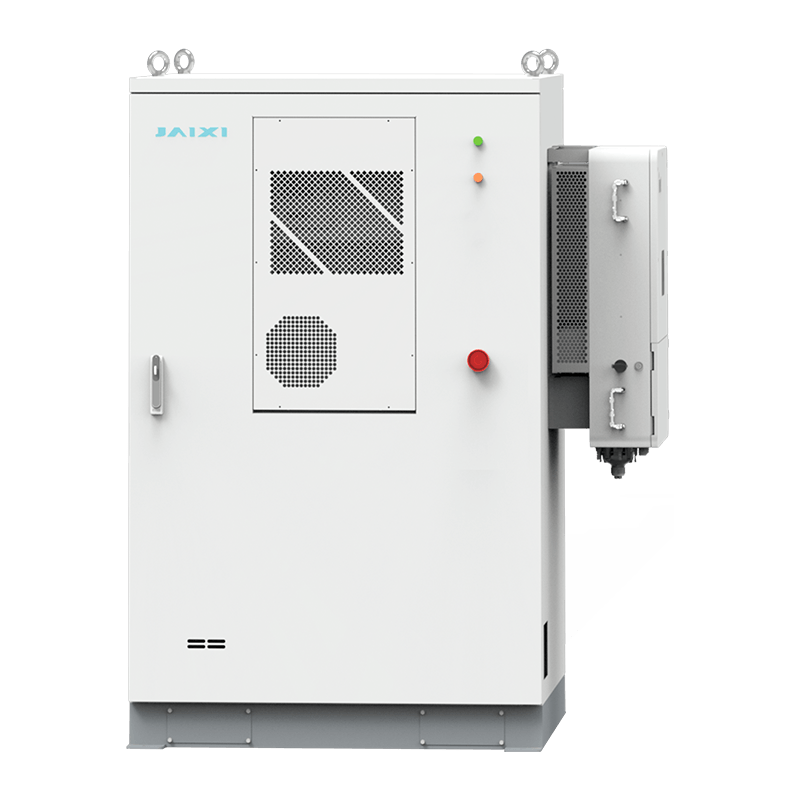

| 技术数据 | Jupiter HB-S50/100 | Jupiter HB-S60/130 |
| 系统规范 | ||
| Nominal Output Power /UPS Power(W) | 50000 | 60000 |
| AC Output Frequency and Voltage | 50/60Hz,230V/400Vac | |
| Grid Type | 3/N/PE | |
| Number of Parallel | DC: Up to 6 units AC: Up to 3 units | |
| Energy Configuration(kwh) | 100.35 | 129.02 |
| Dimension(W×D×H,mm) | 1140×1880×1175 | |
| Weight Appr. (kg) | 1744 | 1956 |
| AC Output Rated Current(A) | 83.4A | 100A |
| Battery Operating Voltage(V) | 313.6~403.2 | 403.2~518.4 |
| MaX.RTE | 93% | |
| Battery Chemistry | LiFePO₄ | |
| IP Rating of Enclosure | IP55 | |
| Installation Method | Floor-Mounted | |
| Storage Temperature(℃) | 0~35 | |
| Operating Temperature(℃) | -30~60℃ | |
| Warranty | 5 years | |
| Inverter Technical Specification | ||
| Max.PV Input Power(W) | 80000 | 90000 |
| Max.PV Input Current(A) | 4*40A | |
| Rated PV Input Voltage(Vdc) | 600 | |
| Start Up DC Voltage(Vdc) | 180 | |
| MPPTVoltage Range(Vdc) | 180-1000 | |
| MaX.PV Short-Circuit Current(A) | 4*60A | |
| Number of MPPT | 4 | |
| Peak Power(off grid) | 1.5 time of rated power;10s | |
| Power Factor | 0.8 leading to 0.8 lagging | |
| THD | <3% | |
| Display | LCDIAPPMeb | |
| Operating Temperature Range(℃) | -30~60℃ | |
| Relative Humidity | 5~85 | |
| Dimension(W×D×H,mm) | 620×900×300mm | |
| Inverter Communication | RS485/CAN/WFI/4G/LAN/Bluetooth | |
| Grid Regulation | VDE4105, EC61727/62116, VDE0126, AS4777.2, CEI0-21, EN50549-1, G98, G99, C10-11, UNE217002, NBR 16149/NBR 16150 | |
| Max.Efficiency | 98.40% | |
| Battery Technical Specification | ||
| Battery Module Nominal Voltage(V) | 51.2 | |
| Battery Module Energy(kWh) | 14.33 | |
| BMS通信 | CAN2.0/RS485/4G | |
| 电池模块重量（kg） | 504×781×230 | |
| 电池模块重量（kg） | 106 | |
| 工作温度范围(℃) | Charge:0~55/Discharge:-20~55 | |
| 循环寿命 | >6000(@25℃±2℃,0.5C/0.5C,90%DOD,80%EOL) | |
| 电池模块认证 | UN38.3, SDS, CE, IEC62619 | |
